SAE 45° Flare Tube Fittings
SAE 45° Flare Tube Fittings

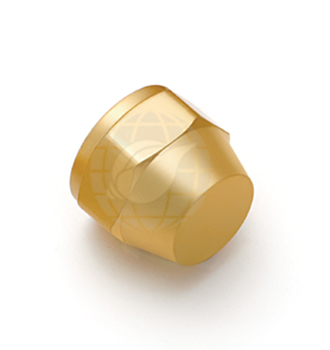

Flare Cap Nut
Flare Female Connector

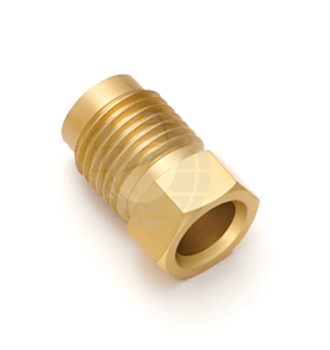

Inverter Flare Long Nut

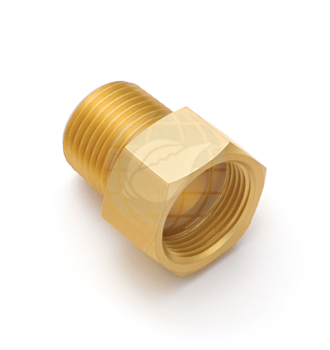

Inverted Flare Male Connector

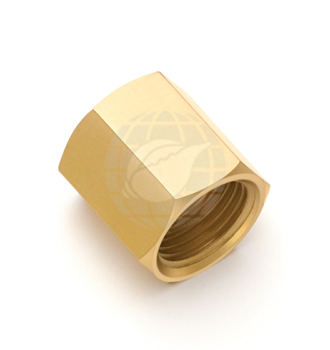

Inverter Flare Union

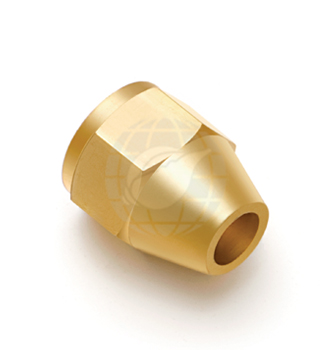

Flare Nut (Long)

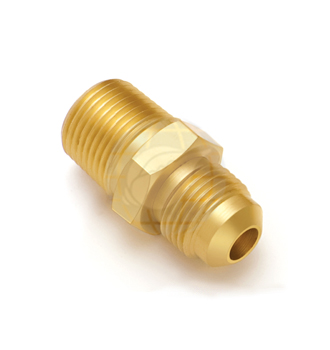

Flare Male Connector

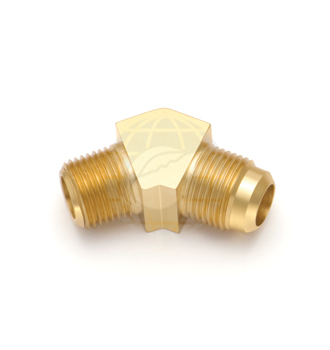

45° Flare Male Elbows
Reducing Flare Union

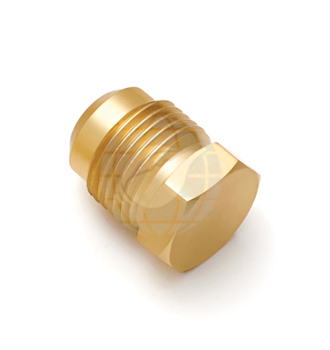

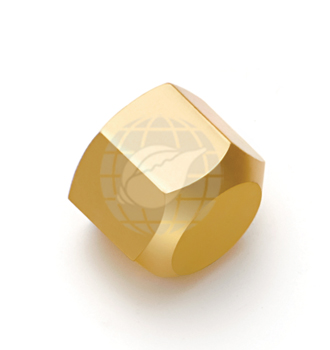

Seal Plug For Internal Flare End
Seal Plug Internal Flare End

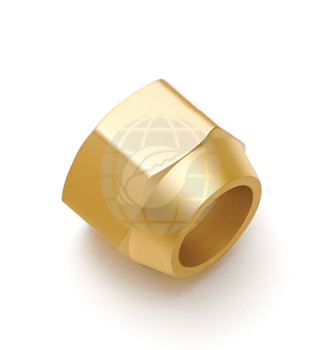

Flare Nut (Short)

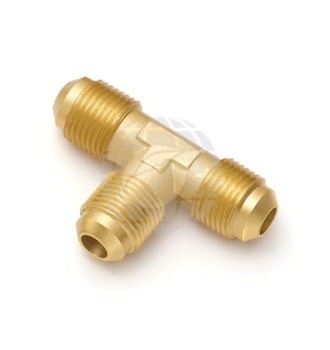

Flare Union Tee (Forging)

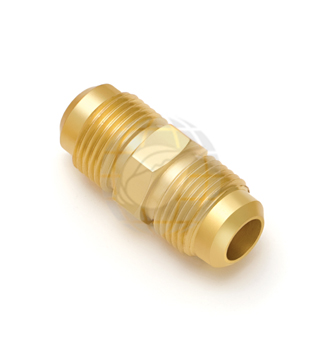

Flare Union

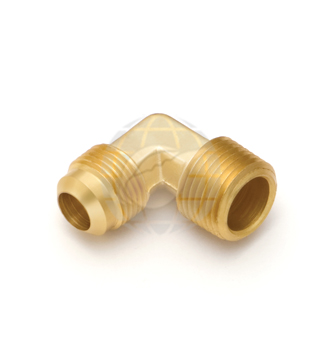

90° Flare Male Elbow

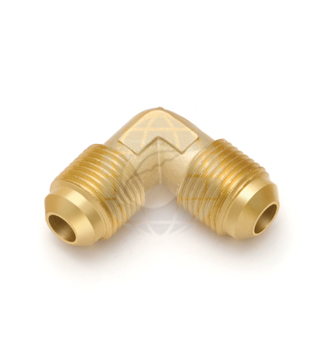

90° Flare Union Elbow
Material
- IS-319/CZ-121 Free Cutting
- CA360 Brass for Barstock fittings
- CA377 Brass for forged fittings
- Lead Free, DZR, Bronze, etc.
- Any special Copper alloys as per customer specifications.
Typical Application
LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Working Pressure Ranges
Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing
Conformance
Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Used With
Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure
Working Pressure up to 2000 PSI with a 4:1 safety factor depending on tube size.
Temperature Ranges
-65°F to +250°F (-53° C to + 121° C) range at maximum operating pressures.
Finish
Natural Brass, Nickel Plated or any special platings as per customer requirement.
| Size | UNEF Thread | UNF Thread |
| 1/8" | 5/16" x 24 | 5/16" x 24 |
| 3/16" | 3/8" x 24 | 3/8" x 24 |
| 1/4" | 7/16" x 24 | 7/16" x 20 |
| 5/16" | 1/2"x 24 | 1/2"x 20 |
| 3/8" | 9/16" x 24 | 5/8" x 18 |
| 1/2" | 11/16" x 20 | 3/4" x 16 |
| 7/16" | 5/8" x 24 | ‐ |
| 5/8" | 13/16" x 18 | 7/8" x 14 |
| 3/4" | 1" x 18 | 1-1/16" x 12 |
| 7/8" | 1-1/8" x 18 | ‐ |
